DG307ACJ Computer IC Chip CMOS Analog Switches With 2 Circuit IC Switch

Name: DG307ACJ Computer IC Chip CMOS Analog Switches With 2 Circuit IC Switch
Brand: Vishay Siliconix
Price: 1 USD

Buy cheap DG307ACJ Computer IC Chip CMOS Analog Switches With 2 Circuit IC Switch product

Brand Name : Vishay Siliconix

Model Number : DG307ACJ

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : T/T, Western Union ， ESCROW

Supply Ability : 5000PCS

Delivery Time : STOCK

Packaging Details : TUBE

Switch Circuit : SPDT

Number of Circuits : 2

On-State Resistance (Max) : 50 Ohm

Voltage - Supply, Dual (V±) : ±5 V ~ 18 V

Switch Time (Ton, Toff) (Max) : 250ns, 150ns

Charge Injection : 12pC

Channel Capacitance (CS(off), CD(off)) : 14pF, 14pF

Current - Leakage (IS(off)) (Max) : 5nA

Contact Now

DG307ACJ Computer IC Chip CMOS Analog Switches 2 Circuit IC Switch

FEATURES

15-V Input Range

Fast Switching—tON: 110 ns

Low rDS(on): 30

Single Supply Operation CMOS Logic Levels

Micropower: 30 nW

BENEFITS

Full Rail-to-Rail Analog Signal Range

Low Signal Error

Wide Dynamic Range

Low Power Dissipation

APPLICATIONS

Low Level Switching Circuits

Programmable Gain Amplifiers

Portable and Battery Powered Systems

Product Attributes	Select All
Packaging	Tube
Part Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	0.084027778
Number of Circuits	2
On-State Resistance (Max)	50 Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±5 V ~ 18 V
Switch Time (Ton, Toff) (Max)	250ns, 150ns
-3db Bandwidth	-
Charge Injection	12pC
Channel Capacitance (CS(off), CD(off))	14pF, 14pF
Current - Leakage (IS(off)) (Max)	5nA
Crosstalk	-74dB @ 500kHz
Operating Temperature	0°C ~ 70°C (TA)
Package / Case	14-DIP (0.300", 7.62mm)
Supplier Device Package	14-PDIP
Base Part Number	DG307A

DG307ACJ Computer IC Chip CMOS Analog Switches With 2 Circuit IC Switch

Deli electronics tehcnology co ltd
www.icmemorychip.com
Email:sales3@deli-ic.com
Skype:hkdeli881
TEL:86-755-82539981

Product Tags:

can controller chip

power mosfet driver

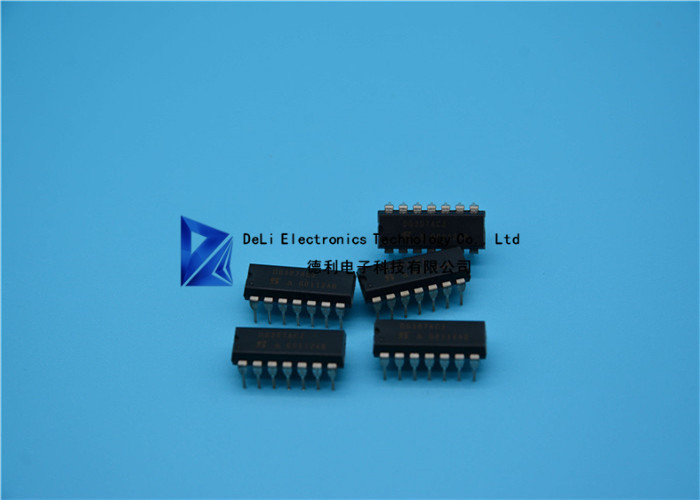

DG307ACJ Computer IC Chip CMOS Analog Switches With 2 Circuit IC Switch Images
