Name: AD16 30V LED Illuminated Momentary Push Button Switch Square Push Button Switch
Brand: ECHIP
Price: 1 USD

Brand Name : ECHIP

Model Number : AD16 30 volt square push button switch

Place of Origin : CHINA

MOQ : 10 PCS

Price : Negotiation

Payment Terms : T/T, Western Union ， ESCROW

Supply Ability : 50000PCS

Delivery Time : STOCK

Packaging Details : BAG

parameter Rated insulated Voltage : 250V

Work Frequency : 50Hz

Stipulated hot current Ith : 5A

Rated working Voltage /Current : AC DC6V,12V,24V,110V,220V≤18mA

Electrical life : 100000 times

Life of signal lamps : ≥30000h

SIZE : 16MM

Contact Now

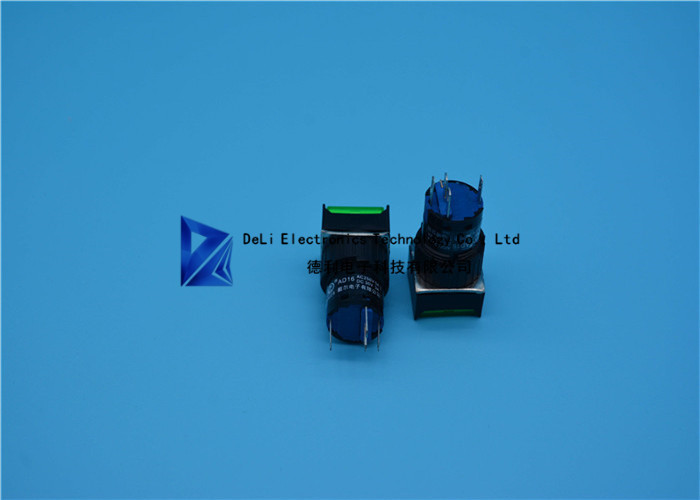

30 volt led illuminated momentary square push button switch

led latching square push button switch IP65

LED Illuminated Momentary Push Button Switch , 30V Square Push Button Switch

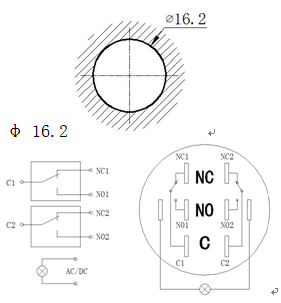

Outline Size of mounding hole

AD16 30V LED Illuminated Momentary Push Button Switch Square Push Button Switch

Specifications

type specification			LA38-*/12C;LA38-*D/12C ;
Name			16mm square push button switch
Products Standard			GB14048.5
Operation Condition	Altitude height	Environment temperature		Storage temperature	Relative humidity		Pollution class		Install type
	≤2000m	-25℃~+55℃		-40℃~+70℃	≤90%		3		Ⅲ
Main technical index	common parameter	Rated insulated Voltage				250V
		Insulated resistance				≥100MΩ
		Front protect class				IP54(Type with “P”-“IP65”)
		Withstand Voltage				1.89KV/5S
		Work Frequency				50Hz
	button parameter	Stipulated hot current Ith				5A
		Contact resistance				≤50mΩ
		Rated working Voltage /Current				AC-15		DC-13
						220V/3A		24V/0.7 A
								220V/0.1 A
		Electrical life				100000 times		50000 times
		Mechanical life				Button switch 100000 times
	lamps parameter	Rated working Voltage /Current				AC DC6V,12V,24V,110V,220V≤18mA
		Life of signal lamps				≥30000h

AD16 30V LED Illuminated Momentary Push Button Switch Square Push Button Switch
