2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header

Name: 254MM Male Pin Header Connector Vertical Through Hole PCB Pin Header
Brand: ECHIP
Price: 1 USD

Buy cheap 2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header product

Brand Name : ECHIP

Model Number : PH254

Place of Origin : CHINA

MOQ : 100

Price : Negotiation

Payment Terms : T/T, Western Union ， ESCROW

Supply Ability : 1000000

Delivery Time : STOCK

Packaging Details : BAG

Pitch : 2.54MM

Row : Dual Row

Version : Right-angle

Gender : Male

Circuits : 2-80 PIN

Insulator height : 2.5MM

Contact Now

PCB Connectors 2.54mm Vertical (Through hole) pin header

Electrical:

Rated current: 1.5A

Rated voltage: 125VAC

Insulation resistance: 500MΩmin

Contact resistance: 30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:

Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug

Durability: 600 mating cycles minimum

Materials:

Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)

2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel

3. Shield: 0.20~0.25mm thickness brass with tin plated

4. Gold Plating: Fu",+3u",6u",15u",30u",50u"

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

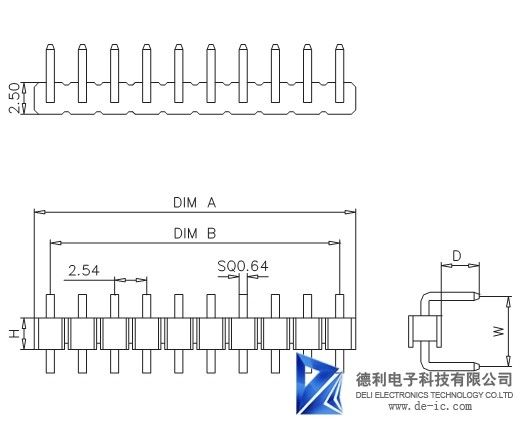

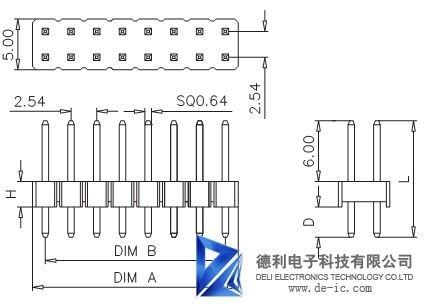

please check the drawing PH254.pdf

2. PCB Connectors 2.54mm Vertical (Through hole) Dual Row pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

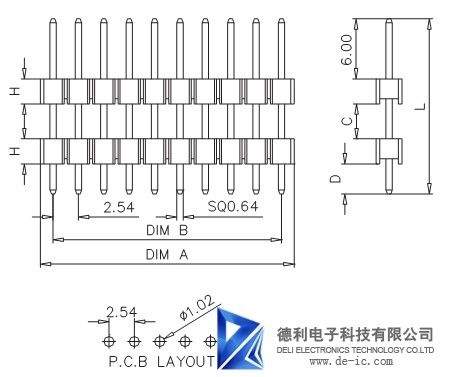

please check the drawing PH254.pdf

3. PCB Connectors 2.54mm Vertical Elevated pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

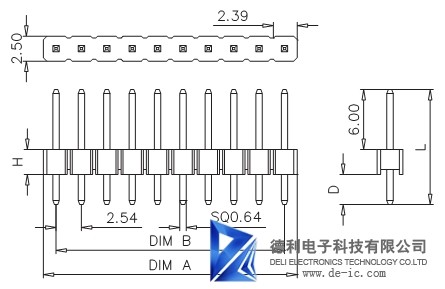

please check the drawing PH254.pdf

4. PCB Connectors 2.54mm Vertical Dual row Elevated pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf

5. PCB Connectors 2.54mm Right-angle (Through hole) pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

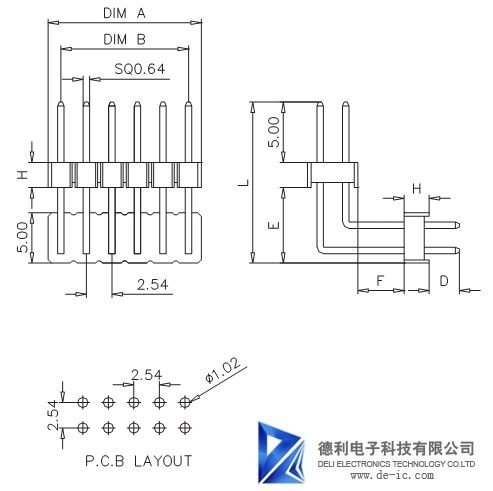

please check the drawing PH254.pdf

6. PCB Connectors 2.54mm Right-angle (Through hole) Dual row pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

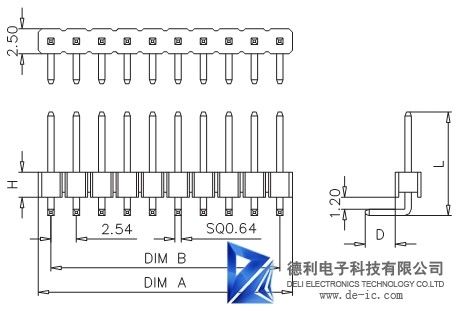

please check the drawing PH254.pdf

7. PCB Connectors 2.54mm Elevated Right-angle pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle ( Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

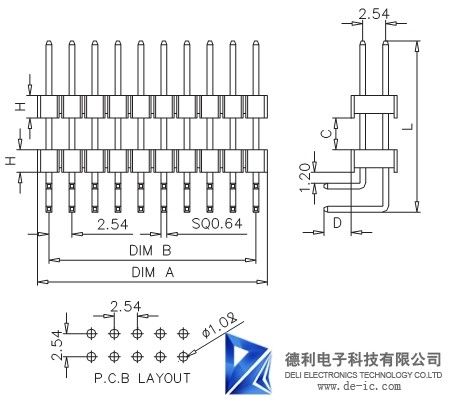

please check the drawing PH254.pdf

8. PCB Connectors 2.54mm Elevated Right-angle Dual row pin header

9. PCB Connectors 2.54mm Elevated Right-angle Dual row pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle ( Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf

10. PCB Connectors 2.54mm SMT (Surface Mount) pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf

11. PCB Connectors 2.54mm SMT (Surface Mount) Dual row pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf

12. PCB Connectors 2.54mm Elevated SMT (Surface Mount) pin header

13. PCB Connectors 2.54mm Elevated SMT (Surface Mount) Dual row pin header

14. PCB Connectors 2.54mm Single row Surface Mount pin header

15. PCB Connectors 2.54mm Dual row Surface Mount pin header

16. PCB Connectors 2.54mm Single row Through hole pin header

2.54MM Male Pin Header Connector , Vertical Through Hole PCB Pin Header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Through hole
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
