Feed Through Header PCB Connector Direct Plug In Block DL2EDG15V-XX-5.08 Durable

  • 1
  • 2

Brand Name : DELI

Model Number : DL2EDG15V-XX-5.08

Place of Origin : CN

MOQ : 100

Supply Ability : 10000

Delivery Time : 2DAYS

Packaging Details : BAG

Payment Terms : T/T, Western Union

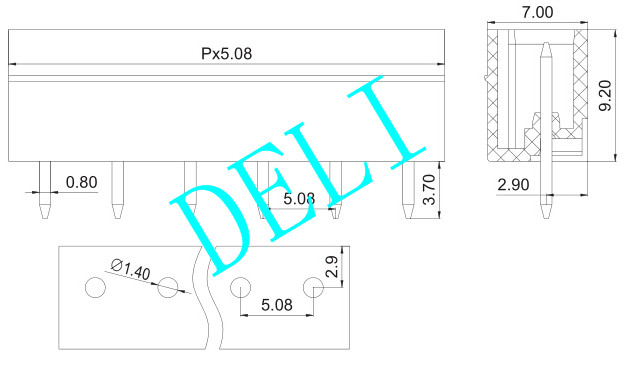

Pitch : 5.08MM

Poles : 2P-24P

Housing : PA66. UL94V-0

Rated voltage : IEC:250V UL:300V

Rated current : IEC:7A UL:8A

Withstanding voltage : AC2000V/1Min

Contact Now

MATERIAL
Pitch:5.08MM
Poles: 2P-24P
Pin header:Brass, Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:IEC:250V UL:300V
Rated current: IEC:7A UL:8A
Withstanding voltage:AC2000V/1Min
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Feed Through Header PCB Connector Direct Plug In Block DL2EDG15V-XX-5.08 Durable
 DeLi Electronics Technology Co., Ltd
 PART# : DL2EDG15V-XX-5.08


Deli electronics tehcnology co ltd
www.icmemorychip.com
Email:sales@deli-ic.com
Skype:hksunny3
TEL:86-755-82539981
