Electric Motor PCB Terminal Block 1000V/57A /65A DL136HT-XX-12.7 Brass Ni Plated Wire Cage

Name: Electric Motor PCB Terminal Block 1000V57A 65A DL136HTXX127 Brass Ni Plated Wire Cage
Brand: DELI
Price: 1 USD

Buy cheap Electric Motor PCB Terminal Block 1000V/57A /65A DL136HT-XX-12.7 Brass Ni Plated Wire Cage product

Brand Name : DELI

Model Number : DL136HT-XX-12.7

Place of Origin : CN

MOQ : 100

Payment Terms : T/T, Western Union

Supply Ability : 10000

Delivery Time : 2DAYS

Packaging Details : BAG

Pitch : 12.7MM

Poles : 1P-XXP

Wire cage : Brass、Ni plated

Housing : PA66. UL94V-0

Rated voltage : 1000V

Rated current : 57A/65A

Withstanding voltage : AC3000V/1Min

Wire range : 20-6AWG

Contact Now

MATERIAL

Pitch:12.7MM

Poles: 1P-XXP

Screw:M4,Steel,Zinc plated,Brass, Ni plated

Wire cage: Brass, Ni plated

Pin header: Brass,Tin plated

Housing:PA66. UL94V-0

ELECTRICAL

Rated voltage:1000V

Rated current:57A/65A

Withstanding voltage:AC3000V/1Min

Wire range:20-6AWG

MECHANICAL

Temperature range:-40℃-- +105℃

MAX soldering:+250℃ for 5 sec

Torque:1.2Nm(10.6 lb.in)

Strip length:10mm

Electric Motor PCB Terminal Block 1000V/57A /65A DL136HT-XX-12.7 Brass Ni Plated Wire Cage

DeLi Electronics Technology Co., Ltd

PART# : DL136HT-XX-12.7

Product Tags:

wire to board connector

terminal block connector

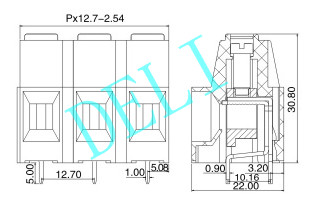

Electric Motor PCB Terminal Block 1000V/57A /65A DL136HT-XX-12.7 Brass Ni Plated Wire Cage Images
